Unreal - HitInterface 상호작용

적이 Override하여 사용할 HitInterface를 만들어줍니다

#pragma once

#include "CoreMinimal.h"
#include "UObject/Interface.h"
#include "HitInterface.generated.h"


USTRUCT(BlueprintType)
struct FGameHitSystemData
{
	GENERATED_BODY()

	//공격 데미지
	UPROPERTY(BlueprintReadWrite)
	float damageAmount;

	//공격 방향
	UPROPERTY(BlueprintReadWrite)
	FVector hitDirection;

	//패링가능 여부
	UPROPERTY(BlueprintReadWrite)
	bool bCanParry;

	//넉백강도
	UPROPERTY(BlueprintReadWrite)
	float knockBackStrength;
};

//interface
UINTERFACE(MinimalAPI)
class UHitInterface : public UInterface
{
	GENERATED_BODY()
};

class IHitInterface
{
	GENERATED_BODY()
public:
	virtual void ReceiveHit(const FGameHitSystemData& damageData, AActor* attacker) = 0;
};



그리고 hitinterface에 알려줄 무기에서 오버랩 트레이스 이벤트를 만들어줍니다

칼에 만들어주었습니다

현재칼에는 StartPoint와 EndPoint로 SceneComponent가 붙어있습니다

칼의 처음과 끝에 컴포넌트를 배치시켜줍니다

UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "MySword")
class USceneComponent* capsureTraceStartPoint;

UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = "MySword")
class USceneComponent* capsureTraceEndPoint;

ABasicSword::ABasicSword()
{
	PrimaryActorTick.bCanEverTick = true;

	sceneComp = CreateDefaultSubobject<USceneComponent>(TEXT("SceneComp"));
	SetRootComponent(sceneComp);

	swordMesh = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("swordMesh"));
	swordMesh->SetupAttachment(RootComponent);

	static ConstructorHelpers::FObjectFinder<UStaticMesh> crowMesh(TEXT("/Game/MainCharacter/Sword/futuristic_sword_upload.futuristic_sword_upload"));
	if (crowMesh.Succeeded())
	{
		swordMesh->SetStaticMesh(crowMesh.Object);
	}

	capsureTraceStartPoint = CreateDefaultSubobject<USceneComponent>(TEXT("startPoint"));
	capsureTraceStartPoint->SetupAttachment(swordMesh);
	capsureTraceStartPoint->SetRelativeLocation(FVector(31.27f, 0.f, 0.f));
	capsureTraceStartPoint->SetRelativeRotation(FRotator(0.f, 4.54f, 0.f));
	capsureTraceEndPoint = CreateDefaultSubobject<USceneComponent>(TEXT("EndPoint"));
	capsureTraceEndPoint->SetRelativeLocation(FVector(372.8f, 40.87f, -2.6f));
	capsureTraceEndPoint->SetupAttachment(swordMesh);
}



무기에서

Trace를 해줄 공격체크함수 , 그리고 중복히트를 방지한 TSet과 배열을 clear해줄 함수를 선언해줍니다

UFUNCTION()
void AttackHitCheck(float deltaTime);

UFUNCTION()
void ClearHitActors();

TSet<AActor*> alreadyHitActors;



해당함수에서는 alreadyHitActors배열을 초기화시켜줍니다

void ABasicSword::ClearHitActors()
{
	alreadyHitActors.Empty();
}



공격을 감지하는 함수입니다

pawn채널만 감지를 하며 정해진대상만 체크를합니다

조건은 Enemy 라는 태그를 가진 대상만 공격 가능합니다

void ABasicSword::AttackHitCheck(float deltaTime)
{
	if (!capsureTraceStartPoint || !capsureTraceEndPoint) return;

	FVector traceStart = capsureTraceStartPoint->GetComponentLocation();
	FVector traceEnd = capsureTraceEndPoint->GetComponentLocation();

	TArray<FHitResult> traceHitResults;
	FCollisionQueryParams hitParams;
	hitParams.AddIgnoredActor(this);
	hitParams.AddIgnoredActor(GetOwner());

	//맞는대상 최적화코드 pawn, 그리고 정해진 대상만
	FCollisionObjectQueryParams objQuery;
	objQuery.AddObjectTypesToQuery(ECC_Pawn);

	bool bHitTrace = GetWorld()->SweepMultiByObjectType(
		traceHitResults, traceStart, traceEnd, FQuat::Identity, objQuery, FCollisionShape::MakeCapsule(10.f, 50.f),
		hitParams
	);

	if (bHitTrace)
	{
		for (auto& hit : traceHitResults)
		{
			AActor* hitActors = hit.GetActor();
			if (hitActors && hitActors != GetOwner())
			{

				if (alreadyHitActors.Contains(hitActors))
				{
					continue;
				}

				//태그체킹 Enemy확인
				if (!hitActors->ActorHasTag(FName("Enemy")))
				{
					continue;
				}

				alreadyHitActors.Add(hitActors);

				UE_LOG(LogTemp, Warning, TEXT("Sword hit: %s"), *hitActors->GetName());
			}
		}
	}

	// 디버그 캡슐
	DrawDebugCapsule(GetWorld(),(traceStart + traceEnd) * 0.5f,(traceStart - traceEnd).Size() * 0.5f,10.f,
		FRotationMatrix::MakeFromZ(traceEnd - traceStart).ToQuat(),
		FColor::Red,
		false,
		0.1f
	);
}



공격하고싶은 pawn에는 반드시 Enemy 태그를 붙혀주어야 작동합니다



애님인스턴스에서 배열을 클리어해주는 ClearHitActors함수를 호출해주는 노티파이를 만들어줍니다

void UMainCharacterAnimInstance::AnimNotify_AttackTraceArrayClear()
{
	myPawn = TryGetPawnOwner();
	if (myPawn)
	{
		mainCharacter = Cast<AMainCharacter>(myPawn);
		if (mainCharacter->swordActorComp)
		{
			ABasicSword* sword = Cast<ABasicSword>(mainCharacter->swordActorComp->GetChildActor());
			if (sword)
			{
				sword->ClearHitActors();
			}
		}
	}
}

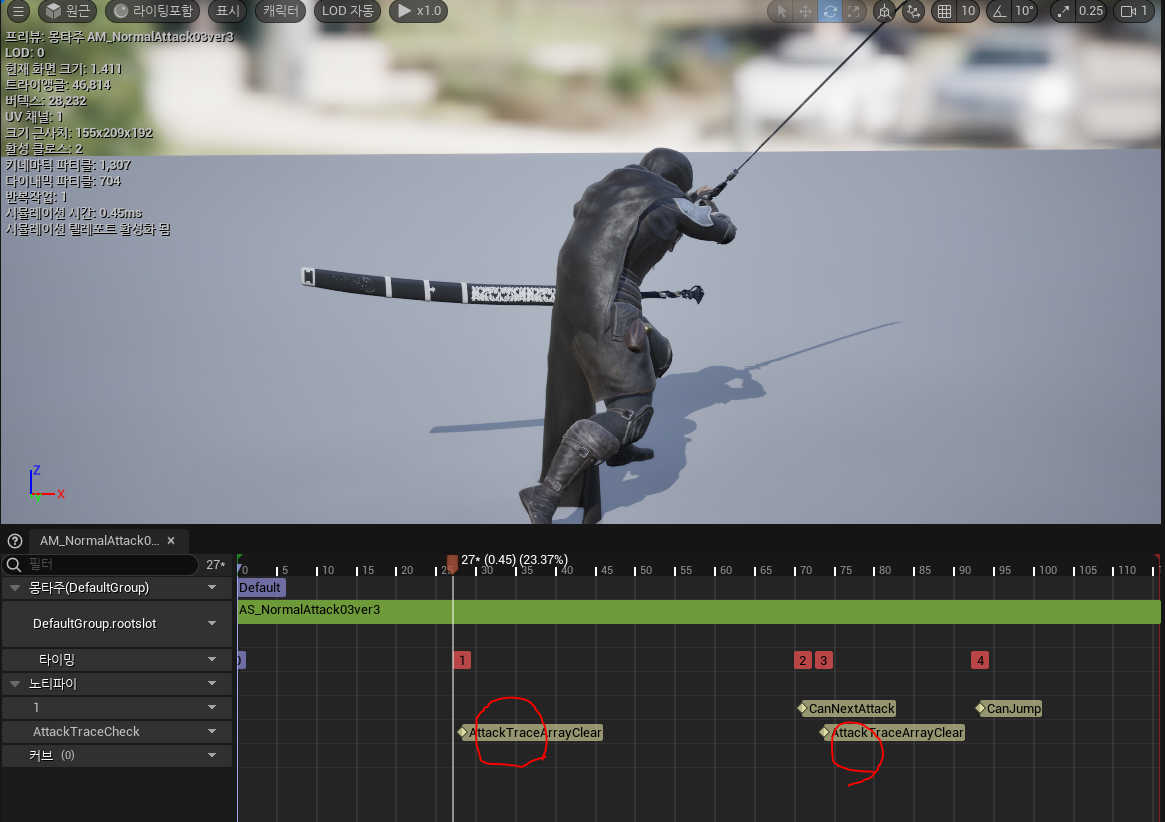

플레이어의 공격 몽타쥬부분에서 공격 시작전에 노티파이로 호출시켜줍니다

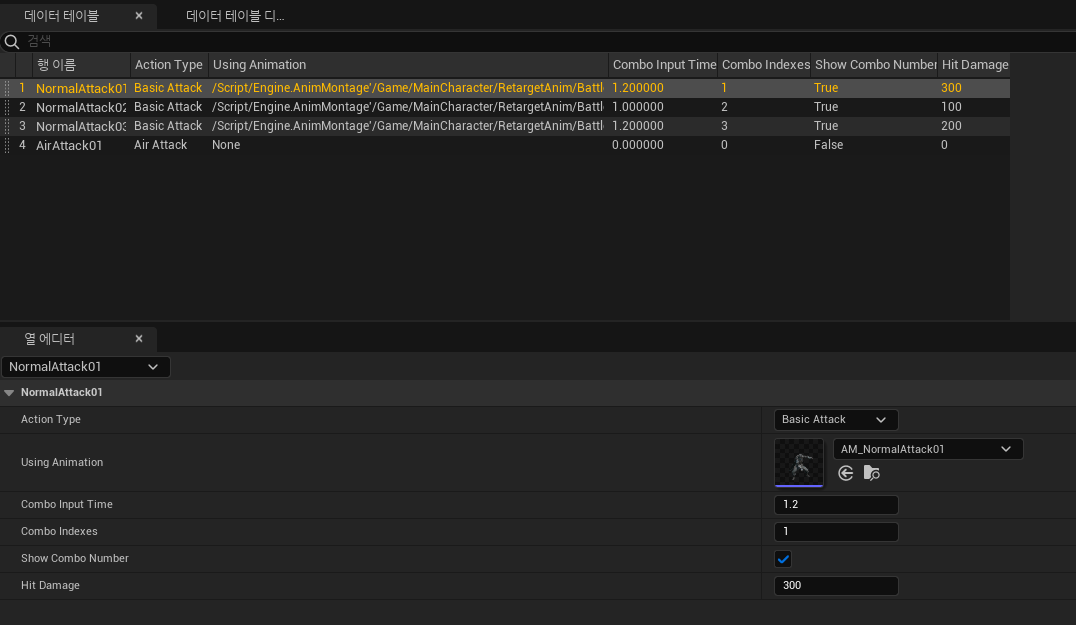

그다음 캐릭터에서 현재 사용하고있는 콤보 인덱스에서 사용하고있는 데이터테이블의 행의 값을 저장해야합니다

캐릭터에서 hitinterface에 값을 보내줄 변수를 선언

UPROPERTY()
int32 saveCurrentAttackDamage = 0;

UPROPERTY()
int32 saveCurrentComboIndex = 0;



공격함수에 추가해줍니다

//datatable의 hitdamage, index 저장
saveCurrentAttackDamage = static_cast<int32>(row->hitDamage);
saveCurrentComboIndex = row->comboIndexes;





적용한 전체코드

void AMainCharacter::PlayBasicAttackCombo()
{
    if (GetCharacterMovement()->IsFalling()) return;
    if (comboRows.Num() == 0) return;

    bIsJumpAllowed = false;

    // 처음 입력 또는 콤보가 끊긴 상태
    if (!bCanNextCombo)
    {
        currentComboIndex = 0;
        bCanNextCombo = true;
        //다음 애니메이션 넘어갈떄의 제한
        bCanReceiveInput = false;
    }
    else
    {
        if (!bCanReceiveInput) return;
        // comboInputTime 안에 재입력 → 다음 콤보
        currentComboIndex++;
        if (currentComboIndex >= comboRows.Num())
        {
            currentComboIndex = 0; // 마지막 콤보 후 다시 처음
        }
        bCanReceiveInput = false;
    }

    FCharacterAnimDataTable* row = comboRows[currentComboIndex];
    if (!row || !row->usingAnimation) return;

    currentMontage = row->usingAnimation;

    //datatable의 hitdamage, index 저장
    saveCurrentAttackDamage = static_cast<int32>(row->hitDamage);
    saveCurrentComboIndex = row->comboIndexes;

    PlayAnimMontage(currentMontage);
    GetWorld()->GetTimerManager().ClearTimer(th_comboAttackTimerHandle);
    GetWorld()->GetTimerManager().SetTimer(th_comboAttackTimerHandle,this,&AMainCharacter::ResetCombo,row->comboInputTime,false
    );

}



HitInterface를 맞을 대상 즉 적 캐릭터에게 Override 해줍니다

UCLASS()
class PORTFOLIOMS_API AEnemyBaseCharacter : public ACharacter
	,public IHitInterface //hitinterface override
{
	GENERATED_BODY()

public:
	AEnemyBaseCharacter();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;
	virtual void OnConstruction(const FTransform& Transform) override;

	//hitInterface//----------------------------------------------------------------------
	virtual void ReceiveHit(const FGameHitSystemData& damageData, AActor* attacker) override;



무기에서 감지한 대상이 만약 hitinterface를 가지고있다면

복사된 데미지 수치를 인터페이스data에 복사해줍니다

밑 코드상에서는 FGameHitSystemData(hitinterface)에 있는 변수에 복사해주었습니다

if (hitActors->GetClass()->ImplementsInterface(UHitInterface::StaticClass()))
{
				AMainCharacter* ownerChar = Cast<AMainCharacter>(GetOwner());
				if (!ownerChar)
				{
					ownerChar = Cast<AMainCharacter>(GetAttachParentActor());
				}
				if (ownerChar)
				{
					FGameHitSystemData data;
					data.damageAmount = ownerChar->saveCurrentAttackDamage;
					UE_LOG(LogTemp, Warning, TEXT("DamageAmount: %d"), data.damageAmount);
				}
}



적용한 전체코드

void ABasicSword::AttackHitCheck(float deltaTime)
{
	if (!capsureTraceStartPoint || !capsureTraceEndPoint) return;
	if (!bCanAttack) return;
	FVector traceStart = capsureTraceStartPoint->GetComponentLocation();
	FVector traceEnd = capsureTraceEndPoint->GetComponentLocation();

	TArray<FHitResult> traceHitResults;
	FCollisionQueryParams hitParams;
	hitParams.AddIgnoredActor(this);
	hitParams.AddIgnoredActor(GetOwner());

	//맞는대상 최적화코드 pawn, 그리고 정해진 대상만
	FCollisionObjectQueryParams objQuery;
	objQuery.AddObjectTypesToQuery(ECC_Pawn);

	bool bHitTrace = GetWorld()->SweepMultiByObjectType(
		traceHitResults, traceStart, traceEnd, FQuat::Identity, objQuery, FCollisionShape::MakeCapsule(10.f, 50.f),
		hitParams
	);

	if (bHitTrace)
	{
		for (auto& hit : traceHitResults)
		{
			AActor* hitActors = hit.GetActor();
			if (hitActors && hitActors != GetOwner())
			{

				if (alreadyHitActors.Contains(hitActors))
				{
					continue;
				}

				//태그체킹 Enemy확인
				if (!hitActors->ActorHasTag(FName("Enemy")))
				{
					continue;
				}

				alreadyHitActors.Add(hitActors);

				UE_LOG(LogTemp, Warning, TEXT("Sword hit: %s"), *hitActors->GetName());


				if (hitActors->GetClass()->ImplementsInterface(UHitInterface::StaticClass()))
				{
					AMainCharacter* ownerChar = Cast<AMainCharacter>(GetOwner());
					if (!ownerChar)
					{
						ownerChar = Cast<AMainCharacter>(GetAttachParentActor());
					}
					if (ownerChar)
					{
						FGameHitSystemData data;
						data.damageAmount = ownerChar->saveCurrentAttackDamage;
						UE_LOG(LogTemp, Warning, TEXT("DamageAmount: %d"), data.damageAmount);
					}
				}
			}
		}
	}

	// 디버그 캡슐
	DrawDebugCapsule(GetWorld(),(traceStart + traceEnd) * 0.5f,(traceStart - traceEnd).Size() * 0.5f,10.f,
		FRotationMatrix::MakeFromZ(traceEnd - traceStart).ToQuat(),
		FColor::Red,
		false,
		0.1f
	);
}

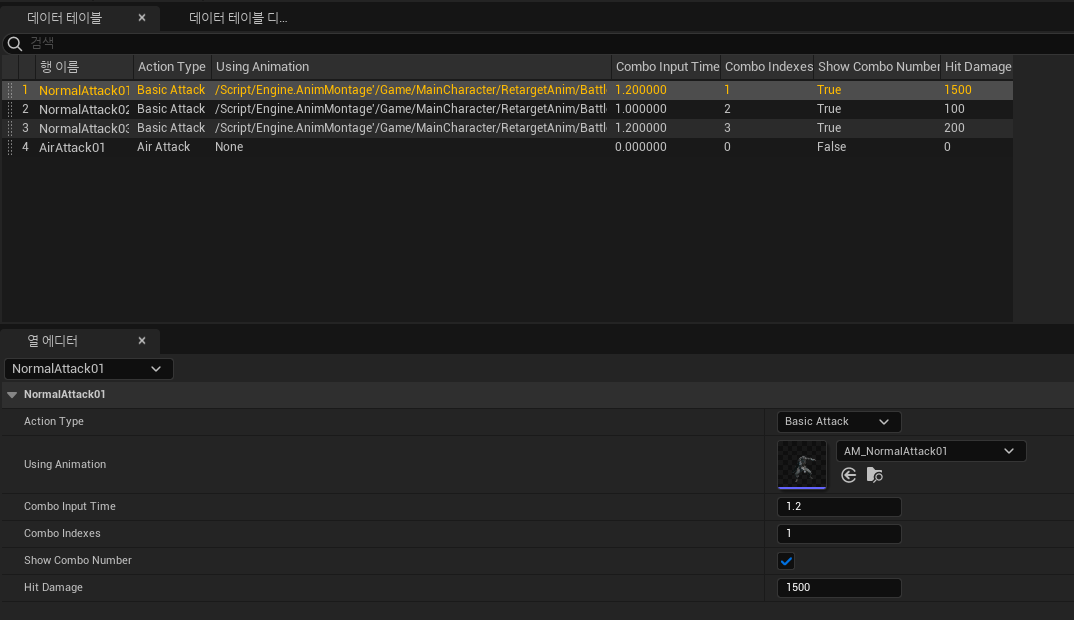

여기까지 완료했다면  데이터 테이블에 있는 Hit Damage값이 HitInterface에 전달이되어

trace할때 수치를 주고받을수있게됩니다



sword trace쪽에 인터페이스의 ReceiveHit함수를 호출하고 데이터를 넘겨줍니다

그러면 hitinterface를 상속받는 대상에게는 data가 전달이되고 호출이됩니다

IHitInterface* hitInterface = Cast<IHitInterface>(hitActors);
if (hitInterface)
{
				hitInterface->ReceiveHit(data, ownerChar);
				UE_LOG(LogTemp, Warning, TEXT("Called ReceiveHit on %s"), *hitActors->GetName());
}



수정한 전체코드

void ABasicSword::AttackHitCheck(float deltaTime)
{
	if (!capsureTraceStartPoint || !capsureTraceEndPoint) return;
	if (!bCanAttack) return;
	FVector traceStart = capsureTraceStartPoint->GetComponentLocation();
	FVector traceEnd = capsureTraceEndPoint->GetComponentLocation();

	TArray<FHitResult> traceHitResults;
	FCollisionQueryParams hitParams;
	hitParams.AddIgnoredActor(this);
	hitParams.AddIgnoredActor(GetOwner());

	//맞는대상 최적화코드 pawn, 그리고 정해진 대상만
	FCollisionObjectQueryParams objQuery;
	objQuery.AddObjectTypesToQuery(ECC_Pawn);

	bool bHitTrace = GetWorld()->SweepMultiByObjectType(
		traceHitResults, traceStart, traceEnd, FQuat::Identity, objQuery, FCollisionShape::MakeCapsule(10.f, 50.f),
		hitParams
	);

	if (bHitTrace)
	{
		for (auto& hit : traceHitResults)
		{
			AActor* hitActors = hit.GetActor();
			if (hitActors && hitActors != GetOwner())
			{

				if (alreadyHitActors.Contains(hitActors))
				{
					continue;
				}

				//태그체킹 Enemy확인
				if (!hitActors->ActorHasTag(FName("Enemy")))
				{
					continue;
				}

				alreadyHitActors.Add(hitActors);

				UE_LOG(LogTemp, Warning, TEXT("Sword hit: %s"), *hitActors->GetName());


				if (hitActors->GetClass()->ImplementsInterface(UHitInterface::StaticClass()))
				{
					AMainCharacter* ownerChar = Cast<AMainCharacter>(GetOwner());
					if (!ownerChar)
					{
						ownerChar = Cast<AMainCharacter>(GetAttachParentActor());
					}
					if (ownerChar)
					{
						FGameHitSystemData data;
						data.damageAmount = ownerChar->saveCurrentAttackDamage;
						//UE_LOG(LogTemp, Warning, TEXT("DamageAmount: %d"), data.damageAmount);
						IHitInterface* hitInterface = Cast<IHitInterface>(hitActors);
						if (hitInterface)
						{
							hitInterface->ReceiveHit(data, ownerChar);
							UE_LOG(LogTemp, Warning, TEXT("Called ReceiveHit on %s"), *hitActors->GetName());
						}
					}
				}
			}
		}
	}

	// 디버그 캡슐
	DrawDebugCapsule(GetWorld(),(traceStart + traceEnd) * 0.5f,(traceStart - traceEnd).Size() * 0.5f,10.f,
		FRotationMatrix::MakeFromZ(traceEnd - traceStart).ToQuat(),
		FColor::Red,
		false,
		0.1f
	);
}







다시한번

hitinterface를 사용할 적 캐릭터는 무조건 HitInterface를 Override해야지만 사용이 가능합니다

UCLASS()
class PORTFOLIOMS_API AEnemyBaseCharacter : public ACharacter
	,public IHitInterface //hitinterface override
{
	GENERATED_BODY()

public:
	AEnemyBaseCharacter();

protected:
	virtual void BeginPlay() override;

public:
	virtual void Tick(float DeltaTime) override;
	virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;
	virtual void OnConstruction(const FTransform& Transform) override;

	//hitInterface//----------------------------------------------------------------------
	virtual void ReceiveHit(const FGameHitSystemData& damageData, AActor* attacker) override;
	//------------------------------------------------------------------------------------

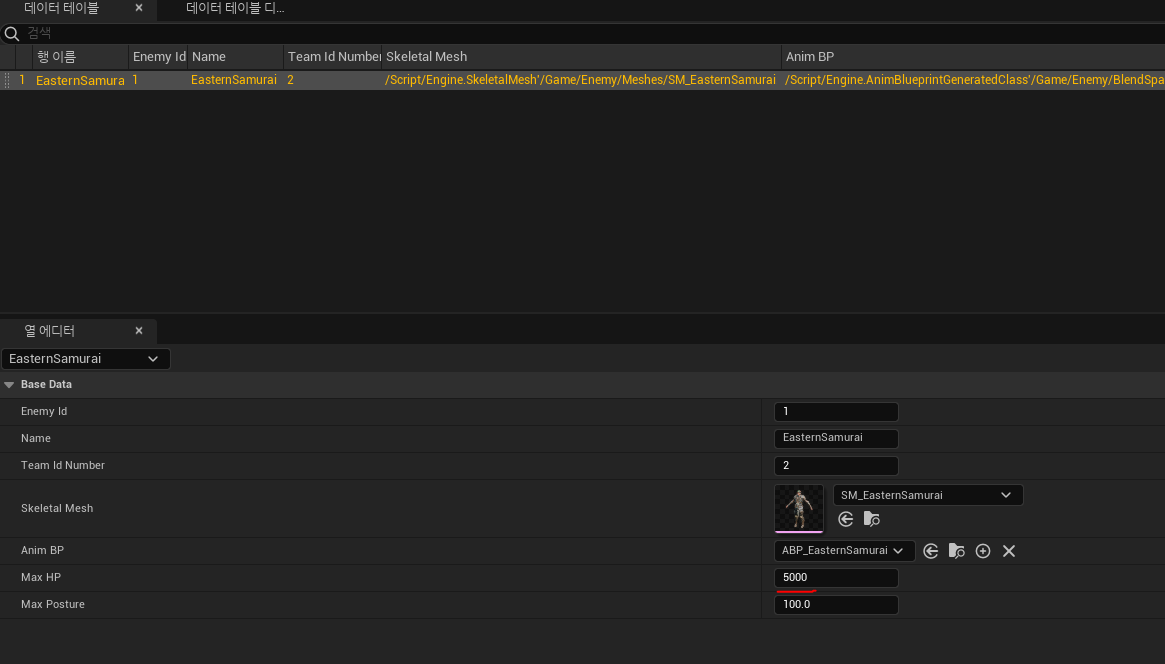

OnConstruction함수에서 row에있는 maxHp를 가져온뒤 값을 최대 maxHp, 최소 0으로 제한해준뒤

확인용으로 몽타쥬를 플레이시켜보겠습니다



currnetHp즉 enemy의 현재 hp변수를 선언한뒤 maxHp와 연동해줍니다

beginplay에서 currentHp = maxHp를 해주었습니다

void AEnemyBaseCharacter::ReceiveHit(const FGameHitSystemData& damageData, AActor* attacker)
{
	currentHp -= damageData.damageAmount;
	currentHp = FMath::Clamp(currentHp, 0, maxHp);

	UE_LOG(LogTemp, Warning, TEXT("CurrentHp : %d"), currentHp);
	PlayAnimMontage(enemyDamagedMontage);
}

데이터테이블의 Enemy Id가 1번인 캐릭터의 Max Hp는 5000



1번공격 (1타) Damage = 300

2번공격 (1타) Damage = 100

3번공격 (2타) Damage = 200

으로 설정해주었습니다

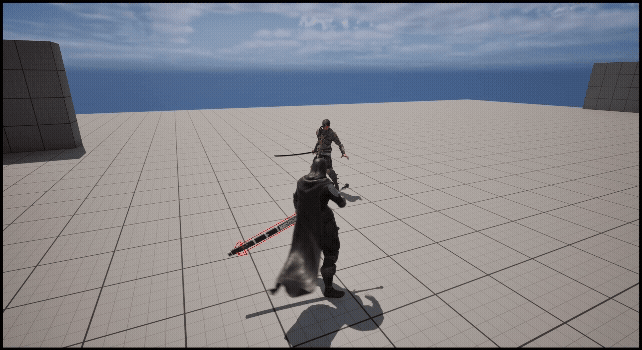

값을 잘받아오는것을 로그로 확인할수 있습니다



HitInterface로 플레이어와 적이 DataTable에 있는 키값으로 서로 상호작용할수있는 구조가 완성되었습니다
