Unreal - Posture Progress / Hit Direction

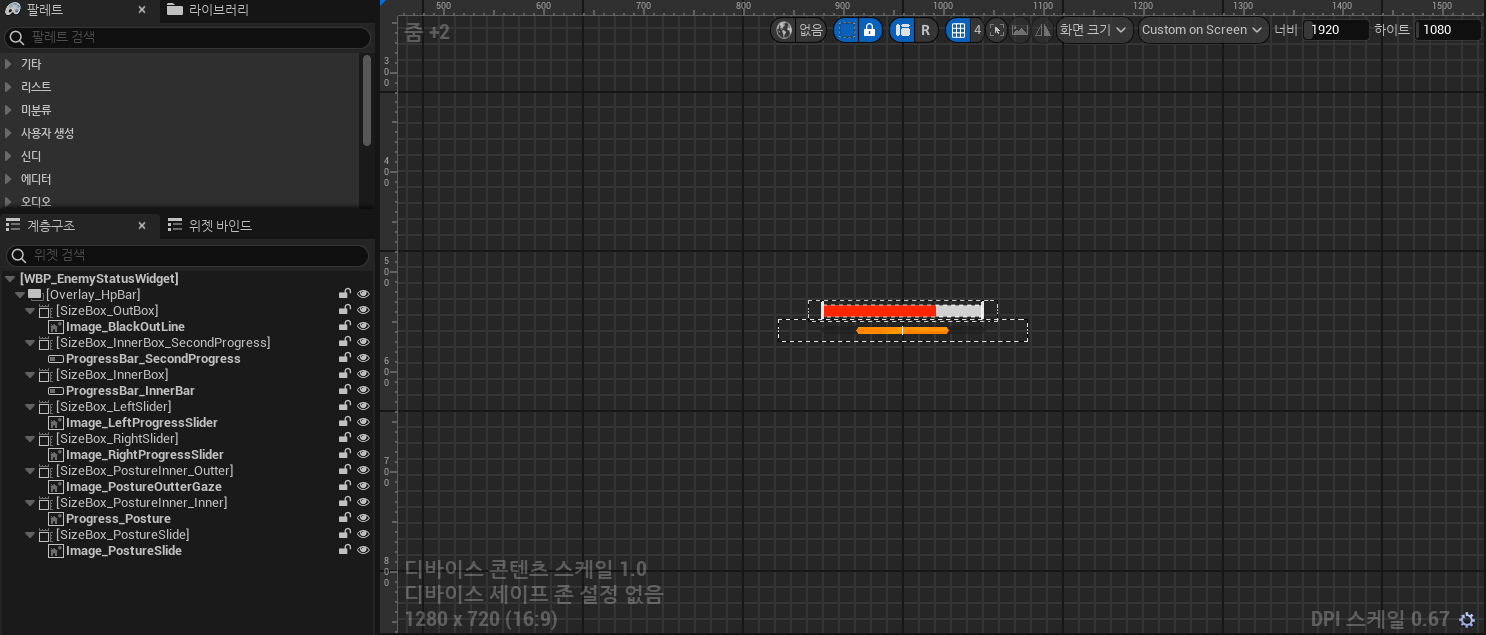

위젯을 만들어줍니다

위젯을 만들어주었습니다 델리게이트를 사용하여 첫번째 빨간색 프로그래스바가 hp에 따라 변동하며

시간이 지나면 흰색 프로그래스바가 빨간 프로그래스바를 따라오도록 설계했습니다

void UEnemyStatusWidget::UpdateMainHPBar(float currentHp, float maxHp)
{
	if (ProgressBar_InnerBar)
	{
		float barPercent = currentHp / maxHp;
		barPercent = FMath::Clamp(barPercent, 0.f, 1.f);
		ProgressBar_InnerBar->SetPercent(barPercent);

		targetHpPercent = barPercent;

		if (GetWorld()->GetTimerManager().IsTimerActive(th_subHPTimerHandle))
		{
			GetWorld()->GetTimerManager().ClearTimer(th_subHPTimerHandle);
		}

		FTimerDelegate timerDel;
		timerDel.BindUFunction(this, FName("UpdateSecondHPBarStep"));
		GetWorld()->GetTimerManager().SetTimer(th_subHPTimerHandle, timerDel, 0.5f, false);
	}
}

void UEnemyStatusWidget::UpdateSecondHPBar(float currentHp, float maxHp)
{
	if (ProgressBar_SecondProgress)
	{
		float barPercent = FMath::Clamp(currentHp / maxHp, 0.f, 1.f);
		ProgressBar_SecondProgress->SetPercent(barPercent);
	}
}



위젯 컴포넌트 형식으로 Enemy에게 컴포넌트를 부착후 위젯을 달아줍니다

UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Widget")
class UWidgetComponent* enemyWidget;

enemyWidget = CreateDefaultSubobject<UWidgetComponent>(TEXT("EnemyWidget"));
enemyWidget->SetupAttachment(RootComponent);
enemyWidget->SetRelativeLocation(FVector(0.f, 0.f, 139.04f));
enemyWidget->SetWidgetSpace(EWidgetSpace::Screen);
enemyWidget->SetDrawSize(FVector2D(100.f, 100.f));
enemyWidget->SetDrawAtDesiredSize(true);



BeginPlay에서 실행될 위젯을 0 부터 1 까지 존재하는 프로그래스바와 동일하게 동기화해줄 함수를 만들어줍니다

void AEnemyBaseCharacter::InitializeStatusBarSet()
{
	currentHp = maxHp;
	if (enemyWidget)
	{
		UEnemyStatusWidget* statusWidget = Cast<UEnemyStatusWidget>(enemyWidget->GetUserWidgetObject());
		if (statusWidget)
		{
			statusWidget->UpdateMainHPBar(currentHp, maxHp);
		}
	}
}



hitinterface로 데미지를 입을때 hp바를 업데이트 시켜줍니다

void AEnemyBaseCharacter::ReceiveHit(const FGameHitSystemData& damageData, AActor* attacker)
{
	currentHp -= damageData.damageAmount;
	currentHp = FMath::Clamp(currentHp, 0.f, maxHp);

	if (enemyWidget)
	{
		UEnemyStatusWidget* statusWidget = Cast<UEnemyStatusWidget>(enemyWidget->GetUserWidgetObject());
		if (statusWidget)
		{
			statusWidget->UpdateMainHPBar(currentHp, maxHp);
		}
    }
}



추가로 맞는 방향에 따라 다른 애니메이션을 출력하는기능도 추가해주었습니다

맞는 방향을 구해줍니다

void AEnemyBaseCharacter::CheckBeAttackedDirction(AActor* attackerWeapon)
{
	if (!attackerWeapon) return;
	FVector toAttackVec = attackerWeapon->GetActorLocation() - GetActorLocation();
	toAttackVec.Z = 0.f;

	if (toAttackVec.IsNearlyZero())
	{
		hitDirection = 0.f;
		return;
	}

	FVector forwardVec = GetActorForwardVector();
	forwardVec.Normalize();
	toAttackVec.Normalize();

	float attackedAngle = FMath::RadiansToDegrees(FMath::Acos(FVector::DotProduct(forwardVec, toAttackVec)));

	FVector cross = FVector::CrossProduct(forwardVec, toAttackVec);
	if (cross.Z < 0)
	{
		attackedAngle *= -1.f;
	}
	//(-180 ~ 180)
	hitDirection = attackedAngle;

}



때리는 대상 (무기) 에서 히트인터페이스에 값을 넘겨줄 함수를 만들어줍니다

void ABasicSword::HandlingHitActor(AActor* hitActor)
{
	AMainCharacter* ownerChar = Cast<AMainCharacter>(GetOwner());
	if (!ownerChar)
	{
		ownerChar = Cast<AMainCharacter>(GetAttachParentActor());
	}
	if (!ownerChar) return;

	float hitDir = 0.f;
	if (AEnemyBaseCharacter* enemy = Cast<AEnemyBaseCharacter>(hitActor))
	{
		enemy->CheckBeAttackedDirction(this);
		hitDir = enemy->hitDirection;
	}

	// 데이터 세팅
	FGameHitSystemData data;
	data.damageAmount = ownerChar->saveCurrentAttackDamage;
	data.hitDirection = hitDir;

	// 공격 적용
	if (IHitInterface* hitInterface = Cast<IHitInterface>(hitActor))
	{
		hitInterface->ReceiveHit(data, ownerChar);
	}

}



무기에서  적을 때릴때 값을 넘겨줍니다



if (hitActors->GetClass()->ImplementsInterface(UHitInterface::StaticClass()))
{
				HandlingHitActor(hitActors);
}



데이터테이블 구조체에 각각 맞는 4방향 hit정보값을 넣어줍니다



HitInterface에 override하여 데미지를 받을때 Receive함수에 맞는 방향을 체크해주는 함수를 추가해줍니다

void AEnemyBaseCharacter::DamagedMontageSelector()
{
	if (!animDataTable) return;

	TArray<FEnemyAnimationDataTable*> allRows;
	animDataTable->GetAllRows<FEnemyAnimationDataTable>(TEXT("DamagedMontageSelector"), allRows);
	if (allRows.Num() == 0) return;

	FString targetAnimName;

	if (hitDirection >= -45.f && hitDirection <= 45.f)
	{
		targetAnimName = "HitFront";
	}
	else if (hitDirection > 45.f && hitDirection <= 135.f)
	{
		targetAnimName = "HitRight";
	}
	else if (hitDirection < -45.f && hitDirection >= -135.f)
	{
		targetAnimName = "HitLeft";
	}
	else
	{
		targetAnimName = "HitBack";
	}

	for (FEnemyAnimationDataTable* row : allRows)
	{
		if (row->animType != "Damaged") continue;
		if (row->animName != targetAnimName) continue;
		if (row->animMontage)
		{
			PlayAnimMontage(row->animMontage, row->playRate);
			break;
		}
	}
}



결과물

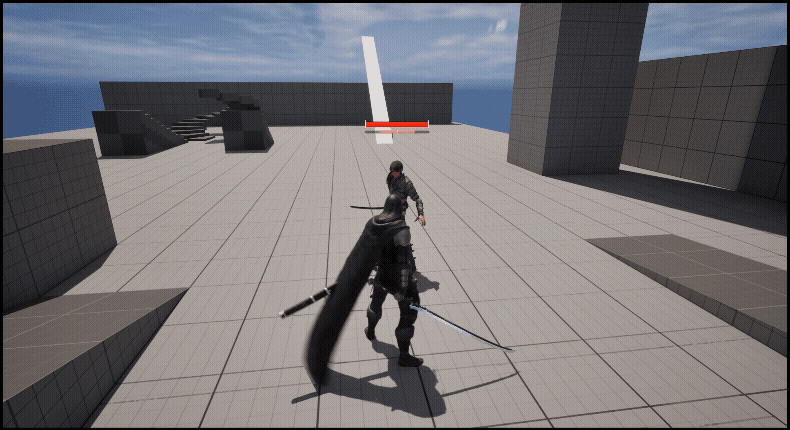

Dynamic Progressbar

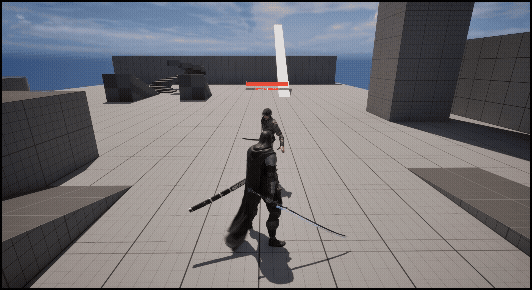

HitDirection
