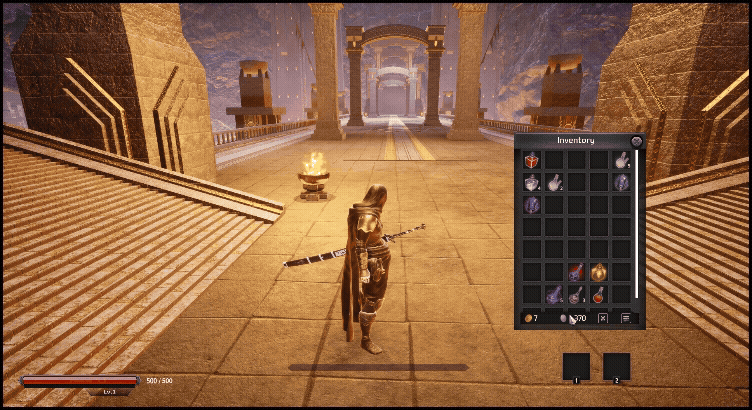

미리보기

구현내용

플레이어의 인벤토리의 아이템을 등록하여 사용할수있는

퀵슬롯 시스템을 구현하였습니다

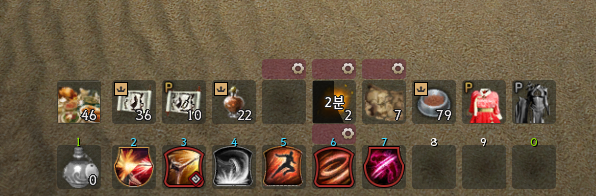

검은사막의 예시입니다 아이템 및 스킬을 퀵슬롯으로 사용 가능합니다

사용한 클래스

사용한 클래스	사용 목적
ItemProcessor(UObject)	아이템ID -> 효과 데이터 변환 힐 / 버프 / 퍼센트 버프 등 실제 사용 처리
QuickslotComponent(액터컴포넌트)	실제 아이템 데이터 소스 아이콘 / 이름 / 설명의 근원지
QuickSlotWidget(위젯)	퀵슬롯UI, 아이콘 / 수량 표시

구현

ItemProcessor

역할 : 아이템 사용 규칙 담당자

아이템을 쓴다 라는 개념을 하나의 책임으로 분리

ItemID -> FUserItemInfo 로 변환

[ DataTable 기반, 아이템마다 효과를 데이터로 분리 ]

구현 C++

헤더

.h

#pragma once

#include "CoreMinimal.h"
#include "UObject/NoExportTypes.h"
#include "StatComponent.h"
#include "ItemProcessor.generated.h"

class AMainCharacter;
class UStatComponent;
struct FUseItemInfo;

UENUM(BlueprintType)
enum class EUseItemType : uint8
{
	None        UMETA(DisplayName = "None"),
	HealFixed   UMETA(DisplayName = "Heal Fixed"),
	HealPercent UMETA(DisplayName = "Heal Percent"),
	BuffStat    UMETA(DisplayName = "Buff Stat"),
	BuffRate    UMETA(DisplayName = "Buff Rate"),
};

USTRUCT(BlueprintType)
struct FUseItemInfo
{
	GENERATED_BODY()

	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	EUseItemType useItemType = EUseItemType::None;

	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	EBaseStatType buffStatType = EBaseStatType::Hp;

	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	float value = 0.f;

	UPROPERTY(EditAnywhere, BlueprintReadWrite)
	float duration = 0.f;

	UTexture2D* buffIcon = nullptr;
	const FItemData* itemData = nullptr;
};


UCLASS(Blueprintable, BlueprintType)
class PORTFOLIOMS_API UItemProcessor : public UObject
{
	GENERATED_BODY()

public:
	void Init(class AMainCharacter* activeOwner);

	void ApplyHeal(float amount);
	void ApplyHealPercent(float percent);

	UFUNCTION()
	void ApplyBuffStat(EBaseStatType statType, float value, float duration, UTexture2D* icon);

	UFUNCTION()
	void ApplyBuffStatRate(EBaseStatType statType, float rate, float duration, UTexture2D* icon);

	UFUNCTION()
	void ProcessUseItem(const FUseItemInfo& info);
public:
	UPROPERTY()
	class AMainCharacter* ownerCharacter;

	UPROPERTY()
	UStatComponent* statComp;

	UPROPERTY()
	class UInventoryComponent* invenComp;

public:
	UFUNCTION()
	FUseItemInfo GetItemInfoByID(int32 itemID) const;


};

구현부

.cpp

#include "ItemProcessor.h"
#include "MainCharacter.h"
#include "ItemData.h"
#include "InventoryComponent.h"
#include "StatComponent.h"

void UItemProcessor::Init(AMainCharacter* activeOwner)
{
	ownerCharacter = activeOwner;
	if (ownerCharacter)
	{
		statComp = ownerCharacter->FindComponentByClass<UStatComponent>();
		invenComp = ownerCharacter->FindComponentByClass<UInventoryComponent>();

	}


}

void UItemProcessor::ApplyHeal(float amount)
{
	statComp->ApplyHeal(amount);
}

void UItemProcessor::ApplyHealPercent(float percent)
{
	float maxHp = statComp->GetStatTotal(EBaseStatType::Hp);
	statComp->ApplyHeal(maxHp * percent);

}

void UItemProcessor::ApplyBuffStat(EBaseStatType statType, float value, float duration, UTexture2D* icon)
{
	FTempBuff buff;
	buff.statType = statType;
	buff.bonusValue = value;
	buff.duration = duration;
	buff.buffIcon = icon;

	statComp->ApplyTempBuff(buff);
}

void UItemProcessor::ApplyBuffStatRate(EBaseStatType statType, float rate, float duration, UTexture2D* icon)
{
	FTempBuff buff;
	buff.statType = statType;
	buff.bonusRate = rate;
	buff.duration = duration;
	buff.buffIcon = icon;

	statComp->ApplyTempBuff(buff);
}

void UItemProcessor::ProcessUseItem(const FUseItemInfo& info)
{
	if (!statComp)
		return;
	switch (info.useItemType)
	{
	case EUseItemType::HealFixed:
		ApplyHeal(info.value);
		break;

	case EUseItemType::HealPercent:
		ApplyHealPercent(info.value);
		break;

	case EUseItemType::BuffStat:
		ApplyBuffStat(info.buffStatType, info.value, info.duration, info.buffIcon);
		break;

	case EUseItemType::BuffRate:
		ApplyBuffStatRate(info.buffStatType, info.value, info.duration, info.buffIcon);
		break;

	default:
		break;
	}
}

FUseItemInfo UItemProcessor::GetItemInfoByID(int32 itemID) const
{
	FUseItemInfo useInfo;


	const FItemData* itemData = invenComp->GetItemData(itemID);
	if (!itemData)
		return useInfo;

	useInfo.itemData = itemData;
	useInfo.buffIcon = itemData->itemIcon;

	switch (itemID)
	{
	case 0: // 작은 회복 포션
		useInfo.useItemType = EUseItemType::HealFixed;
		useInfo.value = 125.f;
		break;

	case 1: // 든든한 회복 포션
		useInfo.useItemType = EUseItemType::HealFixed;
		useInfo.value = 300.f;
		break;

	case 2: // 위급한 회복 포션
		useInfo.useItemType = EUseItemType::HealPercent;
		useInfo.value = 0.5f; // 최대 HP 50% 회복
		break;

	case 3: // 궁극의 회복약
		useInfo.useItemType = EUseItemType::HealPercent;
		useInfo.value = 1.0f; // 최대 HP 100% 회복
		break;

	case 4: // 공격력 +30, 1분
		useInfo.useItemType = EUseItemType::BuffStat;
		useInfo.buffStatType = EBaseStatType::AttackPower;
		useInfo.value = 30.f;
		useInfo.duration = 60.f;
		break;

	case 5: // 공격력 +100, 1분
		useInfo.useItemType = EUseItemType::BuffStat;
		useInfo.buffStatType = EBaseStatType::AttackPower;
		useInfo.value = 100.f;
		useInfo.duration = 60.f;
		break;

	case 6: // 공격력 +100, 5분
		useInfo.useItemType = EUseItemType::BuffStat;
		useInfo.buffStatType = EBaseStatType::AttackPower;
		useInfo.value = 100.f;
		useInfo.duration = 300.f;
		break;

	case 7: // 공격력 +300, 5분
		useInfo.useItemType = EUseItemType::BuffStat;
		useInfo.buffStatType = EBaseStatType::AttackPower;
		useInfo.value = 300.f;
		useInfo.duration = 300.f;
		break;

	case 8: // 치명타 확률 +10%, 5분
		useInfo.useItemType = EUseItemType::BuffRate;
		useInfo.buffStatType = EBaseStatType::CriticalRate;
		useInfo.value = 0.1f; // 10%
		useInfo.duration = 300.f;
		break;

	case 9: // 치명타 확률 +20%, 5분
		useInfo.useItemType = EUseItemType::BuffRate;
		useInfo.buffStatType = EBaseStatType::CriticalRate;
		useInfo.value = 0.2f; // 20%
		useInfo.duration = 300.f;
		break;

	default:
		useInfo.useItemType = EUseItemType::None;
		break;
	}

	return useInfo;
}

QuickSlotComponent

역할 : 퀵슬롯의 데이터 & 입력 처리

캐릭터에 붙는 액터 컴포넌트로 퀵슬롯에 들어간

아이템 정보와 사용 요청을 관리합니다

퀵슬롯 데이터 저장
슬롯 사용 관리
인벤토리 연동
UI 갱신 알림

등을 관리합니다

구현C++

헤더

.h

#pragma once

#include "CoreMinimal.h"
#include "Components/ActorComponent.h"
#include "ItemSlot.h"
#include "QuickSlotComponent.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE_TwoParams(FOnQuickSlotUpdated, int32, slotIndex, int32, itemID);

UCLASS( ClassGroup=(Custom), meta=(BlueprintSpawnableComponent) )
class PORTFOLIOMS_API UQuickSlotComponent : public UActorComponent
{
	GENERATED_BODY()

public:
	UQuickSlotComponent();

protected:
	virtual void BeginPlay() override;

public:
	UPROPERTY(EditAnywhere)
	int32 quickSlotCount = 2;

	UPROPERTY()
	TArray<FItemSlot> quickSlots;

public:
	UFUNCTION()
	void InitQuickSlots();

	UFUNCTION()
	void SetQuickSlot(int32 slotIdx, int32 itemID, int32 count);

	UFUNCTION()
	void SwapQuickSlot(int32 fromIdx, int toIdx);

	UFUNCTION()
	int32 GetQuickSlotItem(int32 slotIdx) const;

public:
	UPROPERTY(BlueprintAssignable)
	FOnQuickSlotUpdated onQuickSlotUpdated;

public:
	UFUNCTION()
	FItemSlot GetQuickSlot(int32 slotIdx) const;

public:
	UFUNCTION()
	void UseSlot(int32 slotIdx);

	UPROPERTY()
	class UInventoryComponent* inventoryComp;

	UPROPERTY()
	class UItemProcessor* itemProcessor;

};

구현부

.CPP

#include "QuickSlotComponent.h"
#include "QuickSlotWidget.h"
#include "ItemProcessor.h"
#include "InventoryComponent.h"


UQuickSlotComponent::UQuickSlotComponent()
{
	PrimaryComponentTick.bCanEverTick = false;
}


void UQuickSlotComponent::BeginPlay()
{
	Super::BeginPlay();
	InitQuickSlots();
	inventoryComp = GetOwner()->FindComponentByClass<UInventoryComponent>();

	itemProcessor = NewObject<UItemProcessor>(this);
	itemProcessor->Init(Cast<AMainCharacter>(GetOwner()));

}

void UQuickSlotComponent::InitQuickSlots()
{
	quickSlots.Empty();
	quickSlots.SetNum(quickSlotCount);

	for (auto& slot : quickSlots)
		slot.Clear();
}

void UQuickSlotComponent::SetQuickSlot(int32 slotIdx, int32 itemID, int32 count)
{
	if (!quickSlots.IsValidIndex(slotIdx))
		return;

	FItemSlot& slot = quickSlots[slotIdx];
	slot.itemID = itemID;
	slot.inCount = count;

	onQuickSlotUpdated.Broadcast(slotIdx, itemID);
}

void UQuickSlotComponent::SwapQuickSlot(int32 fromIdx, int toIdx)
{
	if (!quickSlots.IsValidIndex(fromIdx) || !quickSlots.IsValidIndex(toIdx))
		return;

	quickSlots.Swap(fromIdx, toIdx);

	onQuickSlotUpdated.Broadcast(fromIdx, quickSlots[fromIdx].itemID);
	onQuickSlotUpdated.Broadcast(toIdx, quickSlots[toIdx].itemID);
}

int32 UQuickSlotComponent::GetQuickSlotItem(int32 slotIdx) const
{
	return quickSlots.IsValidIndex(slotIdx) ? quickSlots[slotIdx].itemID : -1;
}

FItemSlot UQuickSlotComponent::GetQuickSlot(int32 slotIdx) const
{
	return quickSlots.IsValidIndex(slotIdx) ? quickSlots[slotIdx] : FItemSlot();
}

void UQuickSlotComponent::UseSlot(int32 slotIdx)
{
	if (!quickSlots.IsValidIndex(slotIdx))
		return;

	FItemSlot& slot = quickSlots[slotIdx];

	//슬롯 비어있는경우
	if (slot.itemID < 0 || slot.inCount <= 0)
		return;

	const FItemData* itemData = inventoryComp->GetItemData(slot.itemID);
	if (!itemData)
		return;

	if (itemProcessor)
	{
		FUseItemInfo useInfo = itemProcessor->GetItemInfoByID(slot.itemID);
		itemProcessor->ProcessUseItem(useInfo);
	}

	//퀵슬롯 차감
	slot.inCount--;

	//인벤토리 차감
	inventoryComp->RemoveItem(slot.itemID, 1);
	if (slot.inCount <= 0)
		slot.Clear();

	onQuickSlotUpdated.Broadcast(slotIdx, slot.itemID);

}

QuickSlotWidget

역할 : 보여주기 + 입력 전달

아이콘 표시
수량 표시
단축키 입력 감지

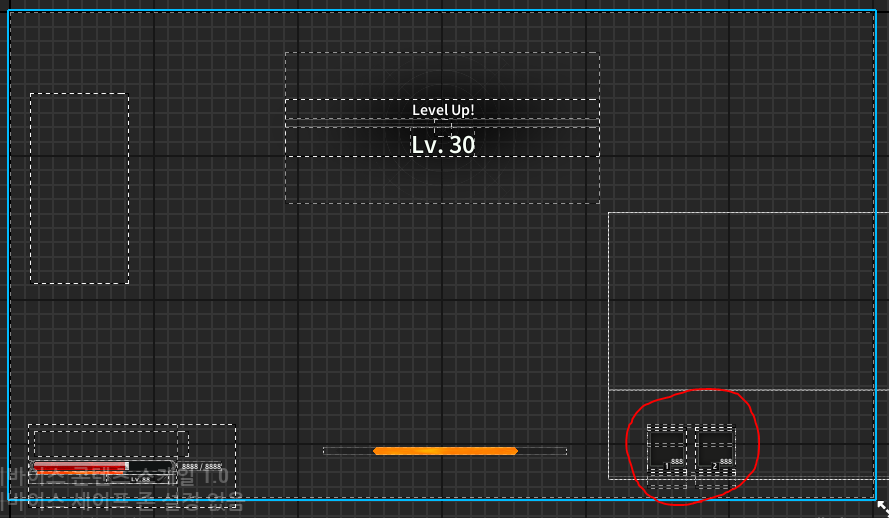

메인 위젯 우측 하단에 추가해주었습니다.

구현 c++

구현부

.cpp

#include "QuickSlotWidget.h"
#include "SlotWidget.h"
#include "InventoryComponent.h"
#include "QuickSlotComponent.h"

void UQuickSlotWidget::NativeConstruct()
{
	Super::NativeConstruct();

	slotWidgets.Empty();
	if (SlotWidget_1)
		slotWidgets.Add(SlotWidget_1);
	if (SlotWidget_2)
		slotWidgets.Add(SlotWidget_2);

	if (APlayerController* pc = GetOwningPlayer())
	{
		if (APawn* pawn = pc->GetPawn())
		{
			quickSlotComp = pawn->FindComponentByClass<UQuickSlotComponent>();
			inventoryComp = pawn->FindComponentByClass<UInventoryComponent>();

			if (quickSlotComp &&!quickSlotComp->onQuickSlotUpdated.IsAlreadyBound(this, &UQuickSlotWidget::UpdateQuickSlotUI))
				quickSlotComp->onQuickSlotUpdated.AddDynamic(this, &UQuickSlotWidget::UpdateQuickSlotUI);
		}
	}

	for (int32 i = 0; i < slotWidgets.Num(); i++)
	{
		USlotWidget* slot = slotWidgets[i];
		if (!slot)
			continue;

		slot->slotType = ESlotWidgetType::QuickSlot;
		slot->slotIdx = i;

		if (quickSlotComp)
		{
			int32 itemID = quickSlotComp->GetQuickSlotItem(i);
			UpdateQuickSlotUI(i, itemID);
		}
	}
}

void UQuickSlotWidget::UpdateQuickSlotUI(int32 slotIdx, int32 itemID)
{
	if (!slotWidgets.IsValidIndex(slotIdx))
		return;

	USlotWidget* targetSlot = slotWidgets[slotIdx];
	if (!targetSlot)
		return;

	FItemSlot slotData = quickSlotComp->GetQuickSlot(slotIdx);
	if (itemID < 0)
	{
		targetSlot->UpdateSlot(FItemSlot(), FItemData());
		return;
	}

	if (!inventoryComp)
		return;

	const FItemData* itemData = inventoryComp->itemDataMap.Find(itemID);
	if (!itemData)
		return;

	targetSlot->UpdateSlot(slotData, *itemData);

}

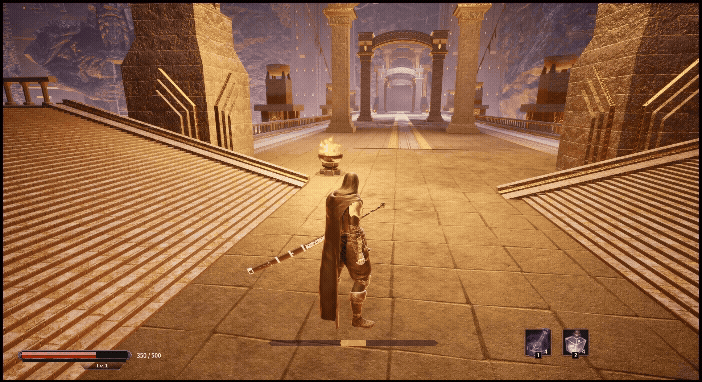

사용방식

키보드 1번과 2번을 InputComponent와 연동시켜줍니다

void AMainCharacterController::InputKeyboard1Pressed()
{
	mainCharacter->usingConsumSlotIdx = 0;
	mainCharacter->ExcutePendingItems();
}
void AMainCharacterController::InputKeyboard2Pressed()
{
	mainCharacter->usingConsumSlotIdx = 1;
	mainCharacter->ExcutePendingItems();
}

소비 아이템 사용 요청이 들어왔을때

현재 지정된 소비 퀵슬롯에서 아이템을 조회하여 어떤아이템을 썻는지 기억합니다

void AMainCharacter::ExcutePendingItems()
{
    if (bUsingItem)
        return;

    if (healRows.Num() == 0)
        return;

    FItemSlot slot = quickSlotComp->GetQuickSlot(usingConsumSlotIdx);
    if (slot.itemID < 0)
        return;

    cachedUsingItemID = slot.itemID;
    usingPotion->SetActorHiddenInGame(false);

    FCharacterAnimDataTable* row = healRows[0];
    UAnimInstance* animIst = GetMesh()->GetAnimInstance();
    bUsingItem = true;

    float playAnimTime = PlayAnimMontage(row->usingAnimation);
    if (playAnimTime <= 0.f)
    {
        bUsingItem = false;
        return;
    }

    FOnMontageEnded endDel;
    endDel.BindUObject(this, &AMainCharacter::OnUseItemMontageEnded);
    animIst->Montage_SetEndDelegate(endDel, row->usingAnimation);
}

ExcutePendingItems에서 실행한 맞는 애니메이션에서 노티파이를 호출하여

UseQuickSlot(인덱스) 를 호출합니다

void UMainCharacterAnimInstance::AnimNotify_UsingConsumItem()
{
	if (!mainCharacter)
		return;
	if (mainCharacter->usingConsumSlotIdx == 0)
		mainCharacter->UseQuickSlot(0);
	else if (mainCharacter->usingConsumSlotIdx == 1)
		mainCharacter->UseQuickSlot(1);

	mainCharacter->SpawnConsumNa();
}

퀵슬롯 컴포넌트에서 UseSlot함수를 호출

void AMainCharacter::UseQuickSlot(int32 slotIdx)
{
    FItemSlot slot = quickSlotComp->GetQuickSlot(slotIdx);
    if (slot.itemID < 0 || slot.inCount <= 0)
        return;

    quickSlotComp->UseSlot(slotIdx);
}

퀵슬롯 컴포넌트의 함수를 호출합니다

void UQuickSlotComponent::UseSlot(int32 slotIdx)
{
	if (!quickSlots.IsValidIndex(slotIdx))
		return;

	FItemSlot& slot = quickSlots[slotIdx];

	//슬롯 비어있는경우
	if (slot.itemID < 0 || slot.inCount <= 0)
		return;

	const FItemData* itemData = inventoryComp->GetItemData(slot.itemID);
	if (!itemData)
		return;

	if (itemProcessor)
	{
		FUseItemInfo useInfo = itemProcessor->GetItemInfoByID(slot.itemID);
		itemProcessor->ProcessUseItem(useInfo);
	}

	//퀵슬롯 차감
	slot.inCount--;

	//인벤토리 차감
	inventoryComp->RemoveItem(slot.itemID, 1);
	if (slot.inCount <= 0)
		slot.Clear();

	onQuickSlotUpdated.Broadcast(slotIdx, slot.itemID);

}

결과

원하는 아이템을 슬롯에 넣을수 있습니다

퀵슬롯을 사용하면 해당아이템의 사용효과가 사용됩니다

아이템의 갯수와 아이콘이 표시됩니다

영상

저작자표시 비영리 변경금지 (새창열림)

'Unreal 프로젝트 다이어리 > 두번째 프로젝트' 카테고리의 다른 글

Unreal - 스킬창 & 연동 (0)	2026.01.01
Unreal - 버프창 (0)	2025.12.27
Unreal - 퀘스트 시스템2 (0)	2025.12.22
Unreal - 가이드 마커 (0)	2025.12.22
Unreal - 대화 Npc (0)	2025.12.22

티스토리툴바
